Path to Illumination - Mopar Lighting Repair

Directly Connected 1969 Charger lighting repair 0

The following Mopar lighting restoration article comes from our friend Kevin Shaw at Directly Connected, the internet's only daily Mopar magazine. For more excellent Mopar how-tos, photo galleries, and car features, be sure to check out DirectlyConnectedMagazine.com.


There are a lot of steps we’ve taken with our current street/strip ’69 Dodge Charger that we would’ve avoided had we had the chance to do it all over again. Key among them would be removing the dashboard for a full restoration when we had the windshield out over a decade ago. Why? Because nobody in their right mind likes crawling underneath their dashboard to try chase broken wires, missing plugs and replace lightbulbs.

But that’s exactly where we found ourselves these past few weeks while investigating the many variables causing our Charger to run without headlights, interior lights or even dash lights. While we’re saving a major portion of proper wiring best practices for a soon-to-be-published full dashboard restoration story, we did want to highlight some incredibly quick and painless fixes that had our Charger lit up like a Christmas tree in as little as a few hours.

Directly Connected 1969 Charger lighting repair 1v2

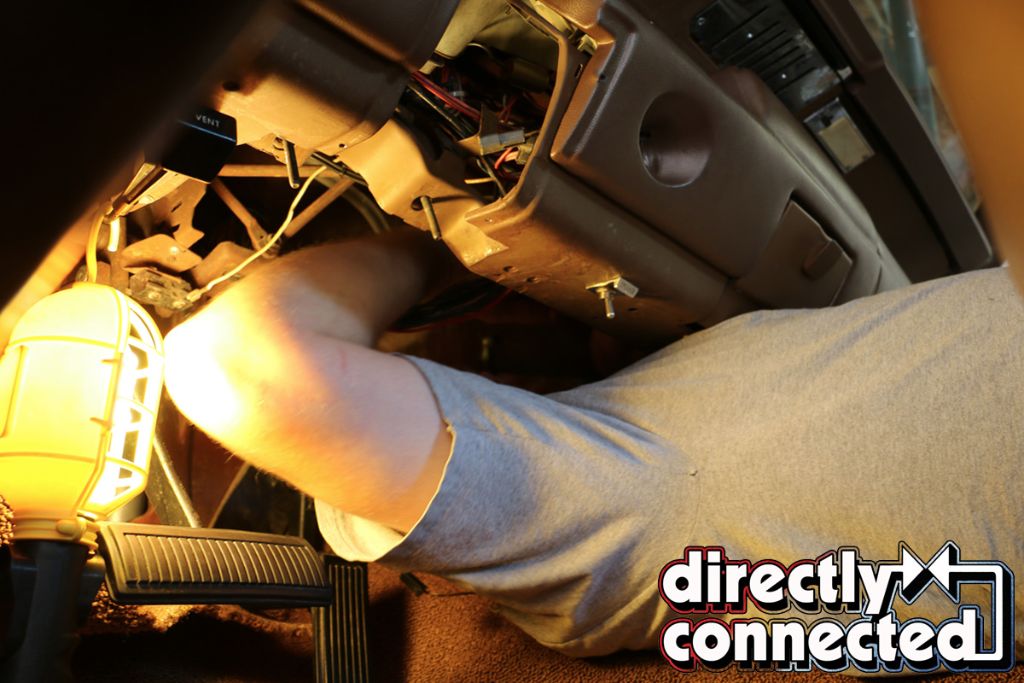

Woulda, coulda, shoulda. Man, we should’ve taken care of this stuff when the windshield was out. We could’ve pulled the dash out and tackled all the wiring at once. Let our mistake a lesson for all of you.

Directly Connected 1969 Charger lighting repair 2      Directly Connected 1969 Charger lighting repair 3

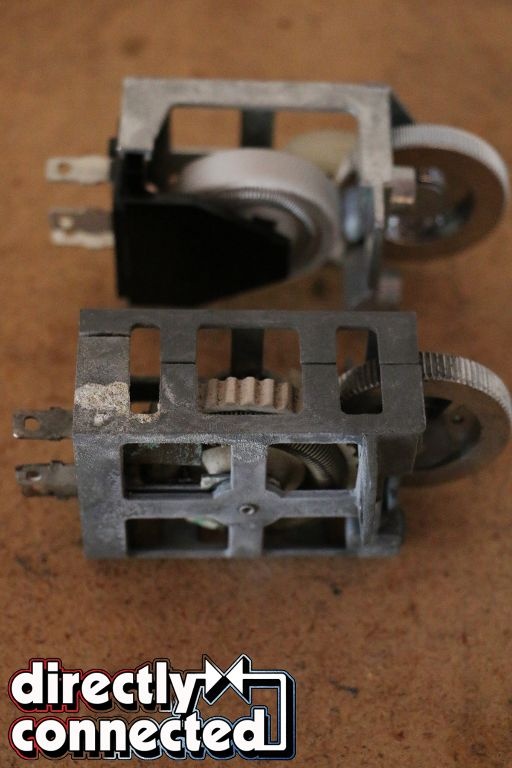

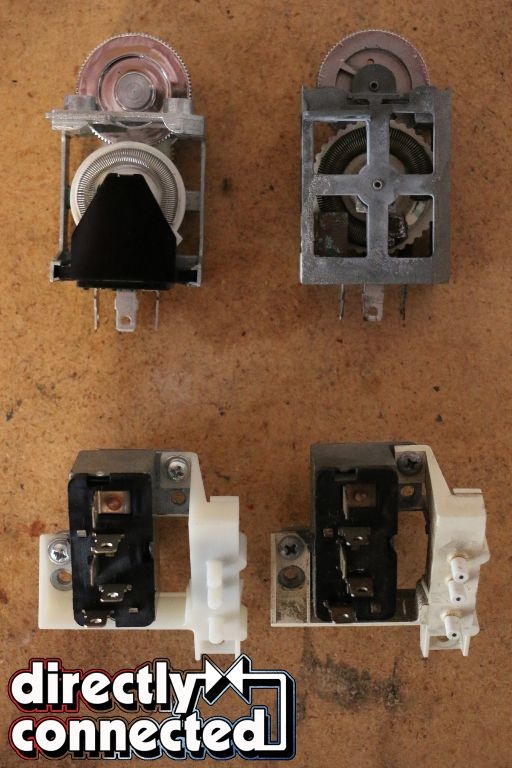

Above left: Exchanging out the old headlight switch and interior dome roller switch was the best course of action given how regularly these switches tend to go out. Above right: The new Classic Industries interior dome switch features a new redesign and better components.

A while back, when we had our grille out of the car, we installed a pair of impressive Electric Headlight Door Actuators (for 68-69 Chargers). Sold through Classic Industries, this actuator kit completely replaces the vacuum-operated headlight door actuator system that our Charger came with from the factory.

Originally, 1968 and 1969 Dodge Chargers (which all came equipped with hideaway headlights, regardless of trim package), featured a large coffee can-looking vacuum canister that was screwed to the inner fender, pulling vacuum off of the engine. This canister, when activated by the large headlight switch, would then pull the headlight doors through similarly vacuum-operated door actuators.

Oftentimes, this would result in a slow, uneven motion of the door pulsing up or down, particularly if the performance level of the engine varied. With the addition of a lopey camshaft, an aftermarket intake manifold and headers will all but scrub the engine’s vacuum, rendering the headlight doors inoperable. This electric actuator kit not only amends that, but also saves weigh in replacing the entire vacuum system.

The two electronic actuators bolt in directly replacing the two factory vacuum actuators are bolted behind each headlight pod. A short wire loom connects the two and tethers to a center control box. The box needs to be mounted securely (we screwed it to the wide central mast, hidden behind the grille), grounded and wired to 1. a live power source, and 2. an activating signal, which Classic Industries recommends splicing into the headlight signal feeding into the highbeam dimmer switch mounted to the floorboard.

Directly Connected 1969 Charger lighting repair 4   Directly Connected 1969 Charger lighting repair 5

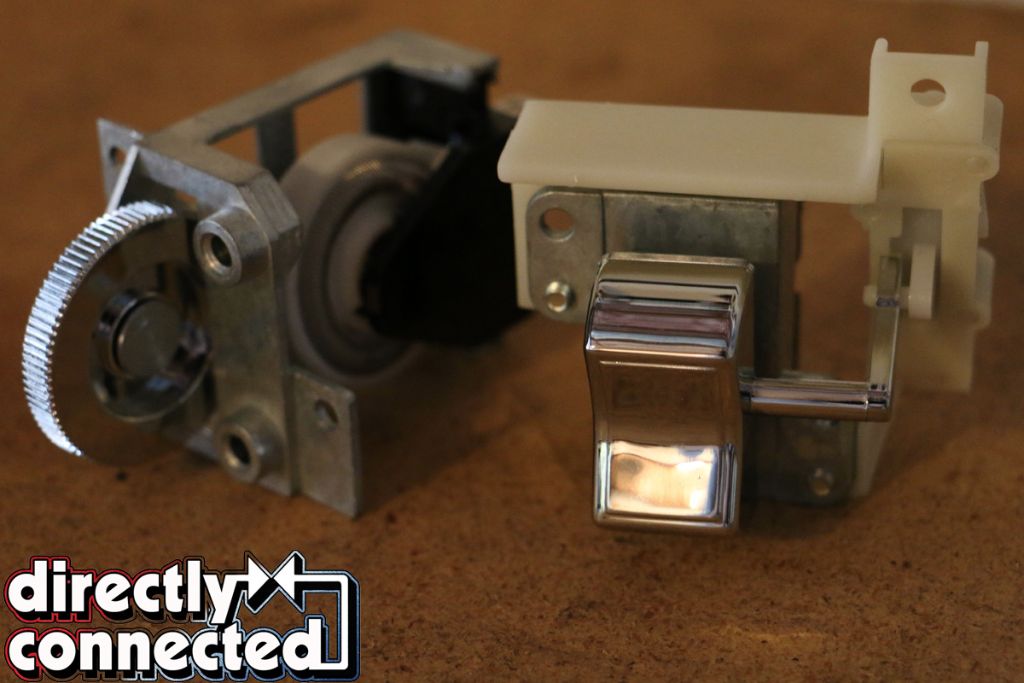

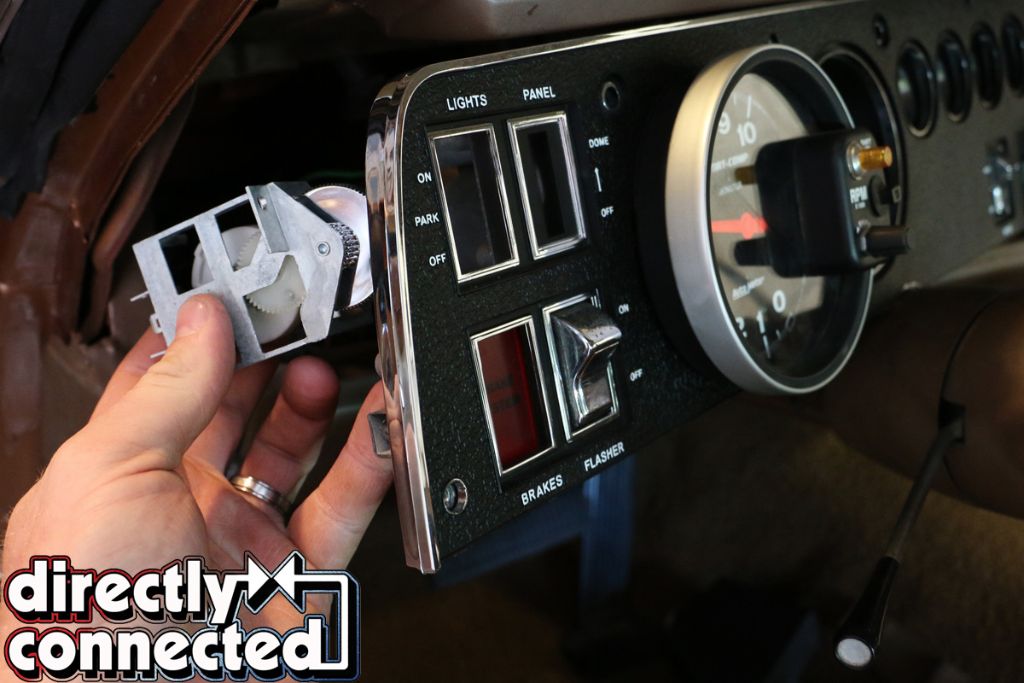

Above left: The new switches are direct replacements and are made with superior materials than stock. Above right: Although not entirely necessary, we found dropped (and pulling) the steering column and A-pillar cover made accessing the back of the gauge cluster significantly easier.

Directly Connected 1969 Charger lighting repair 6   Directly Connected 1969 Charger lighting repair 7

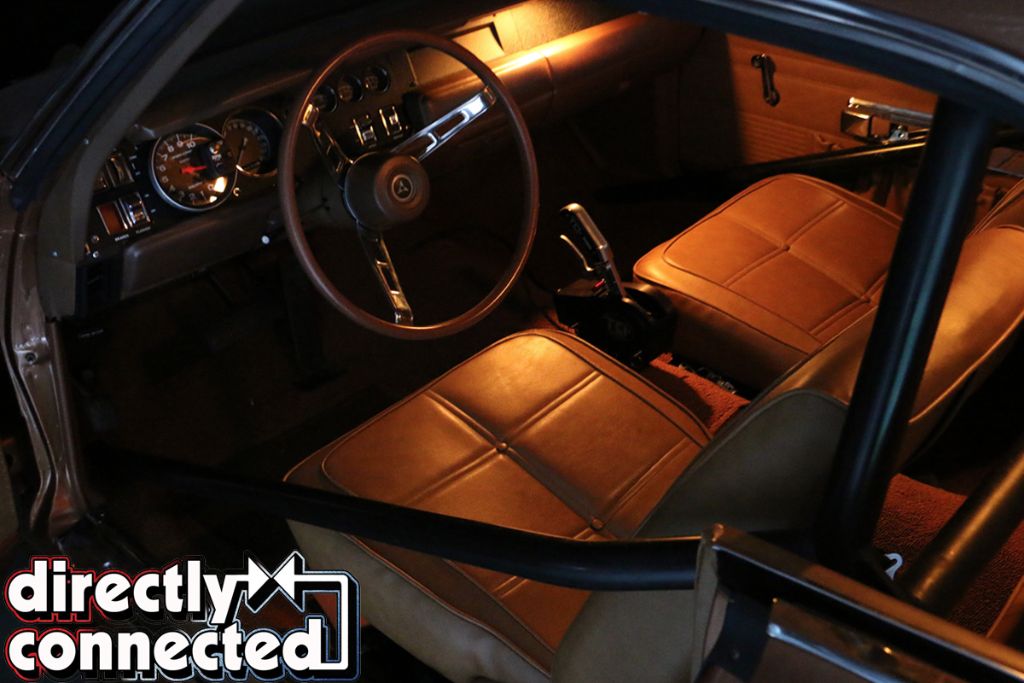

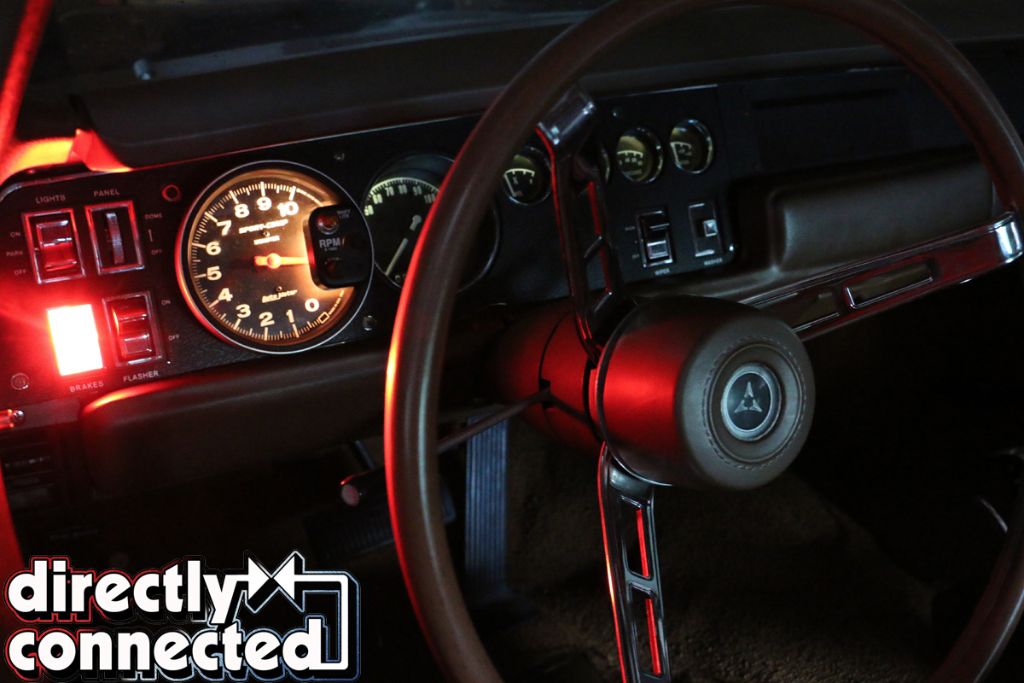

Above left: The new interior dome light was the solution we needed to get our interior lights shining bright (that, and some new bulbs for our overhead dome and map light). Above right: With new bulbs in our dash, turn signal indicators and parking lamp, our Charger’s dash lights up brilliantly.

When the headlight switch is activated, the electric actuators whir to life and quickly (and evenly) roll open, the headlights beaming beneath. At least, so we thought. We discovered that original headlight switches have a nasty tendencies of going bad, and opted to replace both the headlight switch and scrolling dome wheel. And for good cause. Both switches’ contact points were blued with corrosion and gummed at the pivot points.

Thankfully, Classic Industries’ Mopar catalog only continues to grow, and with it their access to some of the aftermarket’s very best replacement parts. The new switches are direct replacements, and are finished beautifully. The dome wheel switch also features a new design that provides better contact points and scrolling. Although not terribly necessary if you’re careful, we lowered the steering column and A-pilar cover to loosen and particularly remove the gauge cluster enough to access the two switches.

Directly Connected 1969 Charger lighting repair 8   Directly Connected 1969 Charger lighting repair 9

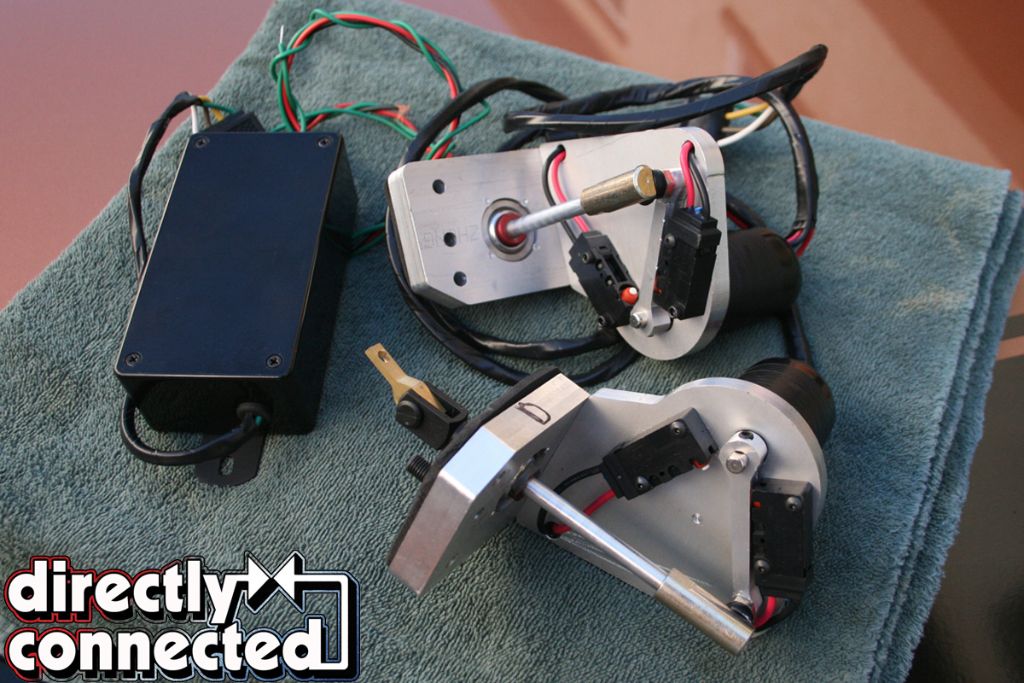

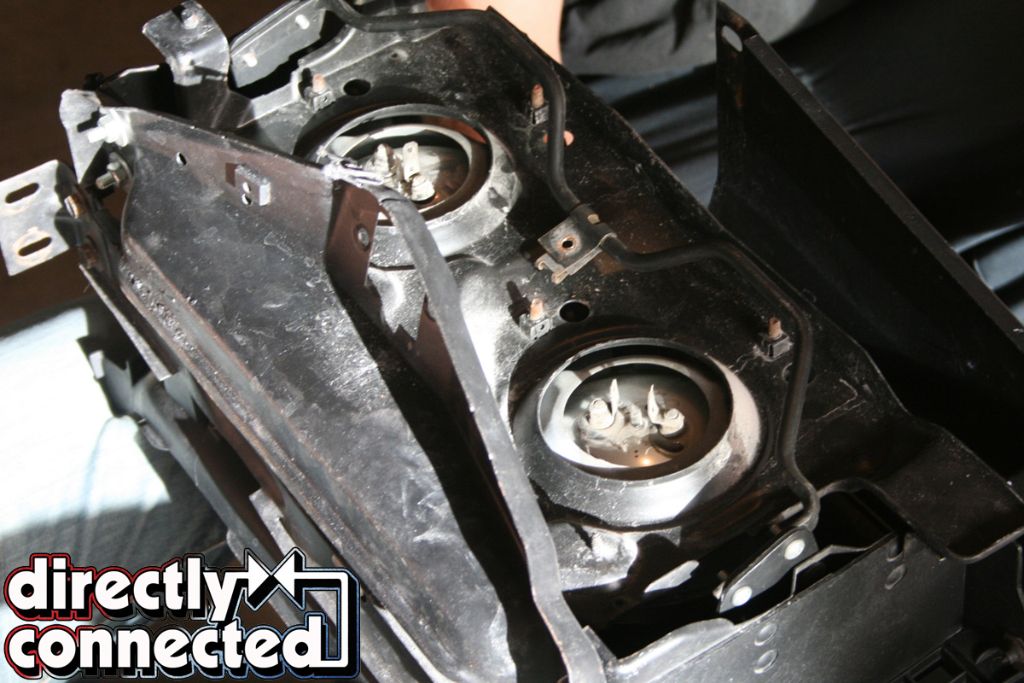

Above left: Purchased through Classic Industries, we landed a set of awesome Electric Headlight Door Actuators for 1968-1969 Chargers. These are meant to completely replace the large and space-consuming factory vacuum system. Above right: With the grille out, here is the pad where the factory vacuum actuators (removed) go. The new electric actuators directly replace them.

Directly Connected 1969 Charger lighting repair 10   Directly Connected 1969 Charger lighting repair 11

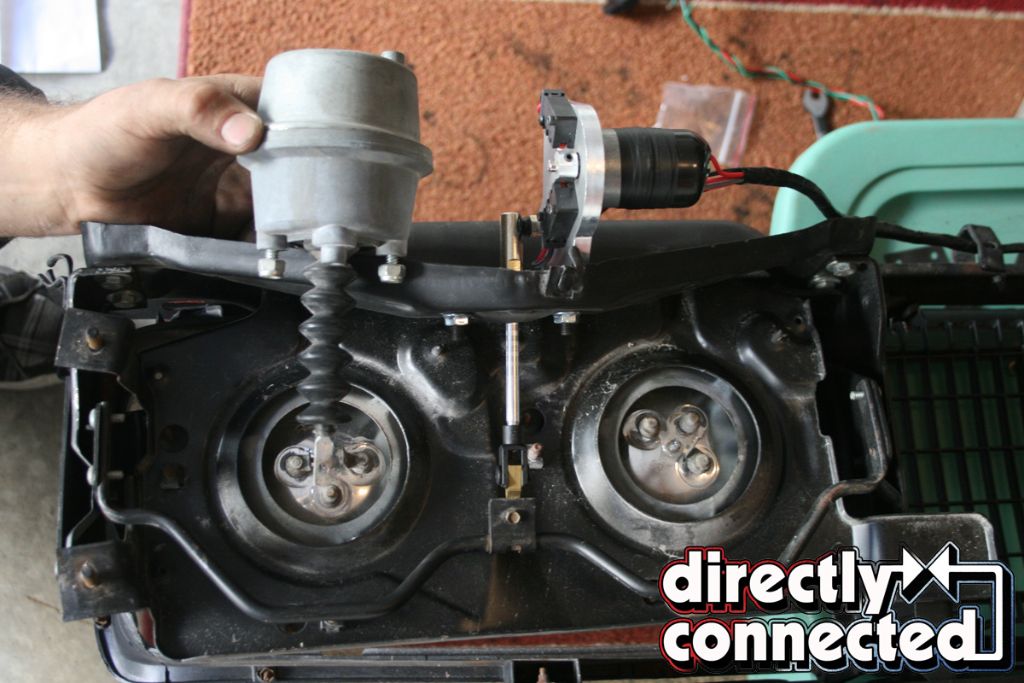

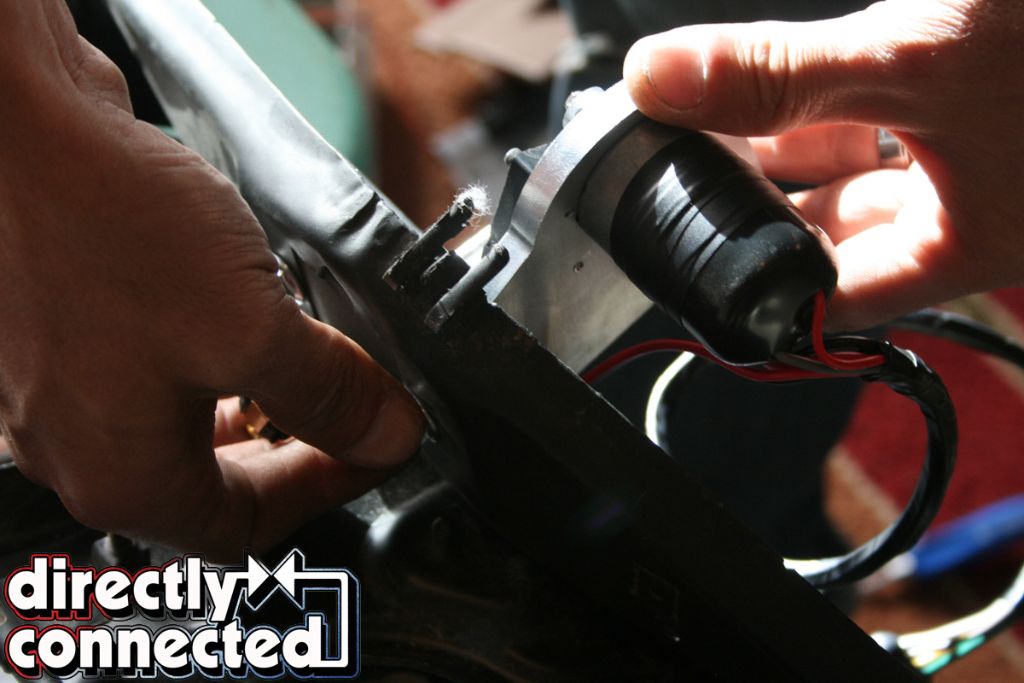

Above left: The actuators are housed on a billet aluminum body with the electric motors and solenoids screwed to it. All of which has been wrapped in weather resistant material to preserve the sensitive electronics. Above right: Here you can see how the electronic actuator replaces the factory vacuum unit.

Both are screwed down with sheet metal screws, and the plugs are specifically designed to only fit each switch. With most of the cluster removed, we also replaced all of the bulbs for the turn signal indicator lights, gauge lights, parking brake lamp, and high beam marker light in the speedometer. Additionally, we discovered that when we first reinstalled our ignition switch that we forgot the blue-shrouded keyhole light, which we quickly put back in place.

A new brake light switch replaced our broken factory one, with the pink wire (coming from the fuse box) and the white wire (leading to the steering column loom and then back to the rear taillight loom) plugging in effortlessly. You’ll notice that we’re opting to replace electronic switches and relays rather than battle through getting old ones to work. Were our Charger an original R/T, 500 or Daytona, we’d be more likely to retain the original factory equipment.

Directly Connected 1969 Charger lighting repair 12      Directly Connected 1969 Charger lighting repair 13

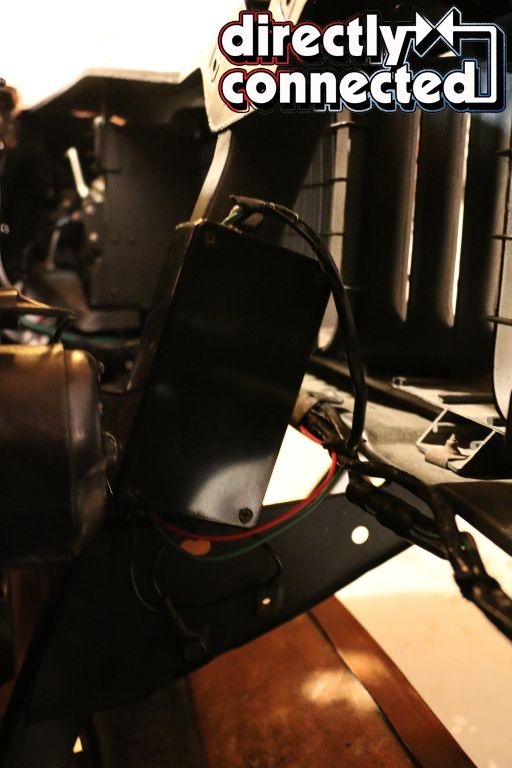

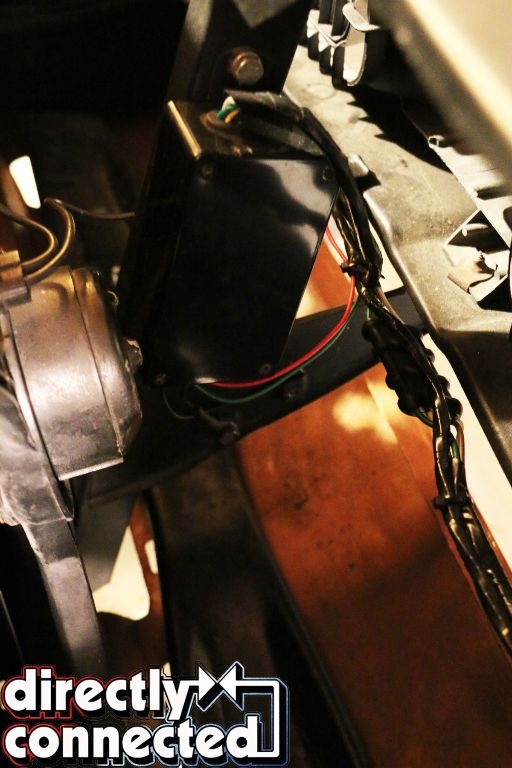

Above: Although the images are a little dark, you can see how the electronic headlight door kit’s control box was mounted to the grille’s center mast just behind the center of the grille, up and out of view. Three wires need to be hooked up: a ground, a live power source and an activation signal, which Classic Industries recommends splicing into the high beam dimmer switch.

Directly Connected 1969 Charger lighting repair 14

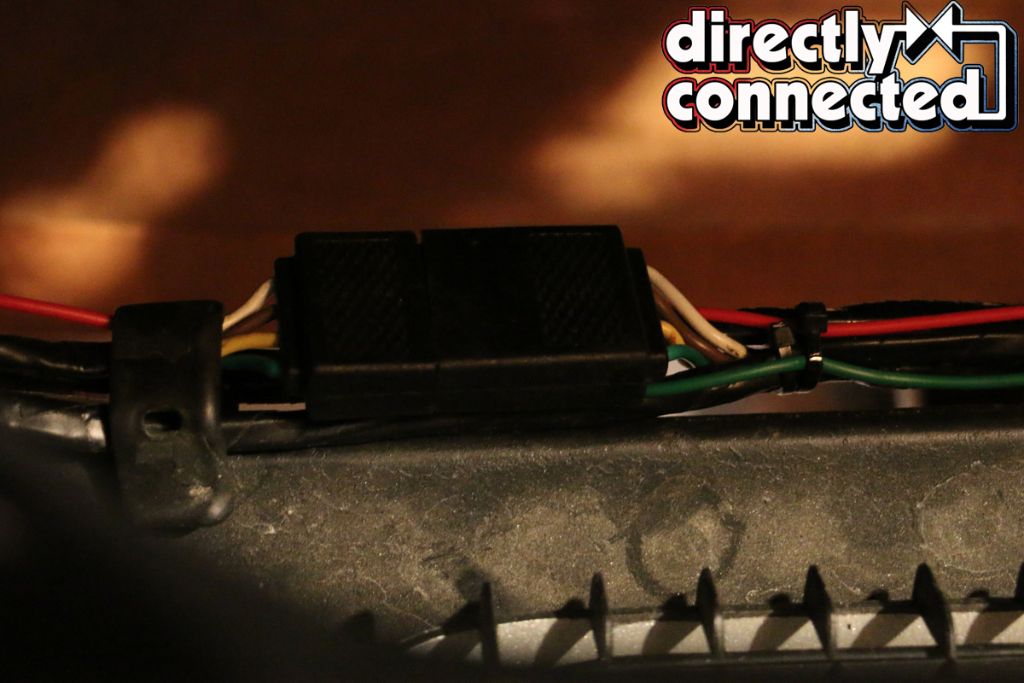

A single plug connects the two actuators together and relays into the control box. Installation took a total of two hours (stopping to take pictures along the way).

Since we were already replacing bulbs and switches, we replaced the original date coded bulbs (as a few had broken tongs while others were simply dim) with new high-yield halogen bulbs from the local parts house. They’re surprisingly cheap, fit directly in, last much longer than the factory bulbs and cast significantly more light. If you’re not entering your car into OE Manufacturer class for judging, do yourself a favor and swap to the new headlights.

While changing out our headlights, we noticed that our lower valance turn signal indicators/running lights were in sorry shape. The argent silver was flaking off, the edges were chipped, and the covers were cloudy and opaque. Seeing that these were identical from 318-powered Charger to the highest-optioned Hemi 4-speed R/T, we didn’t hesitate to dial up Classic Industries again, who rushed out a pair of replacement park lamp lenses.

Directly Connected 1969 Charger lighting repair 15   Directly Connected 1969 Charger lighting repair 16

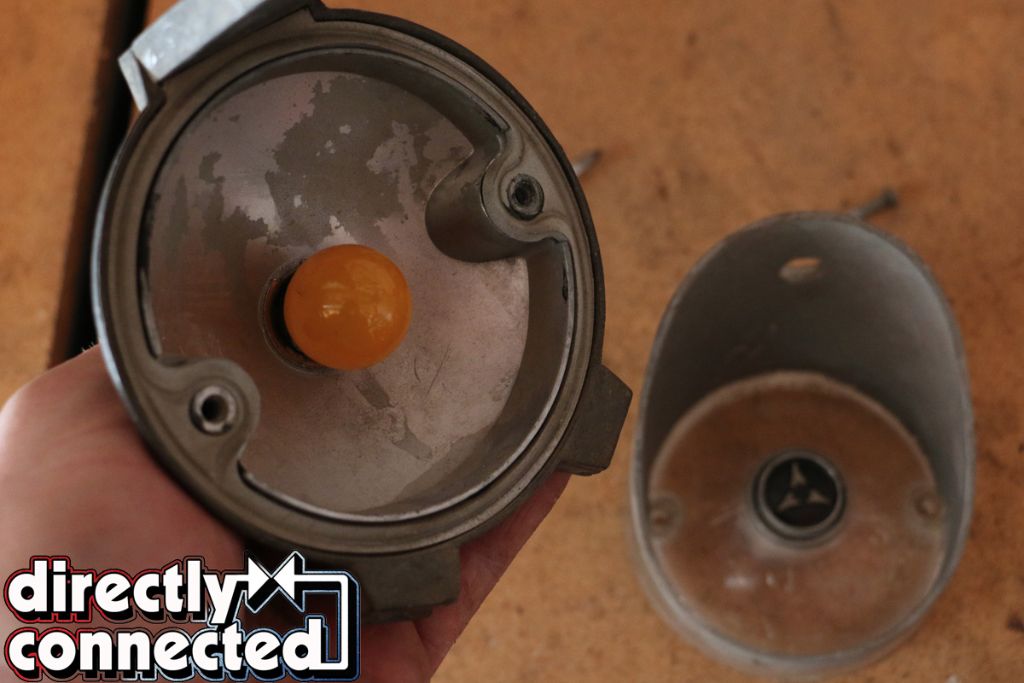

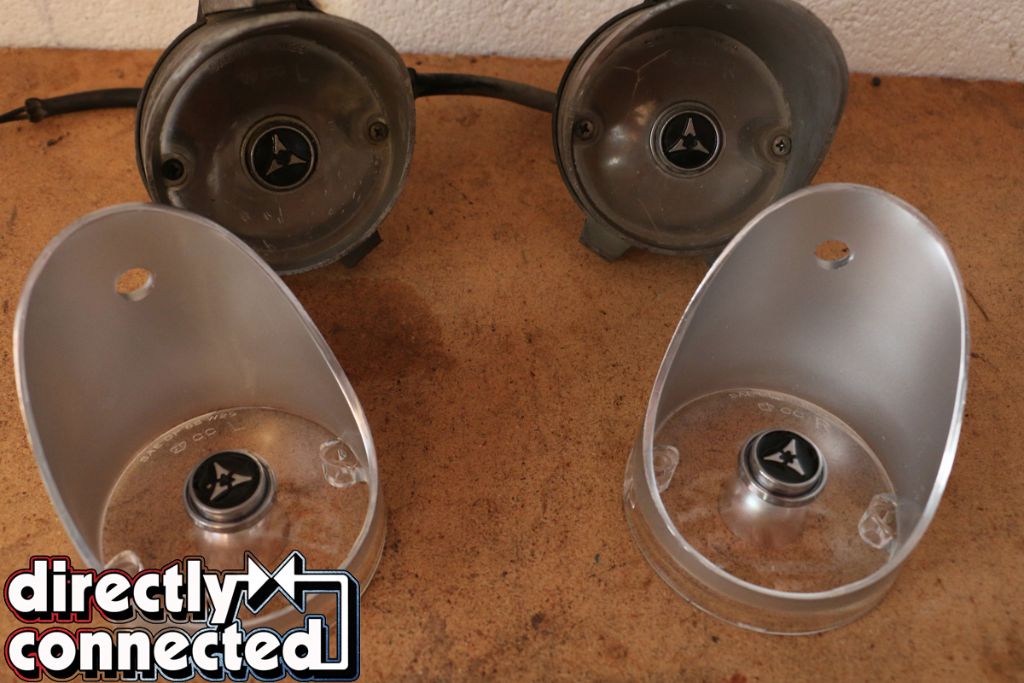

Above left: With our headlights’ door problem solved, we moved on to the lower parking lights. Our originals were considerably dimmed, clouded and distressed compared to these new lenses from Classic Industries. Above right: Inside, our housings were in need of some TLC, including a quick cleaning and repaint.

Directly Connected 1969 Charger lighting repair 17      Directly Connected 1969 Charger lighting repair 18

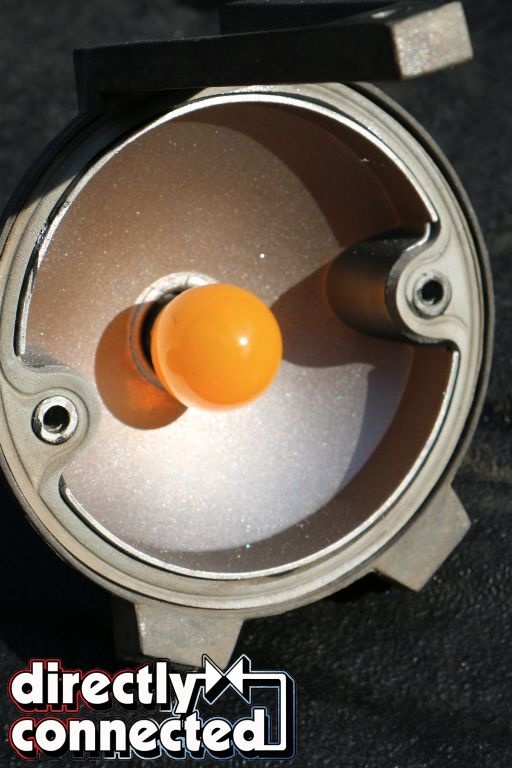

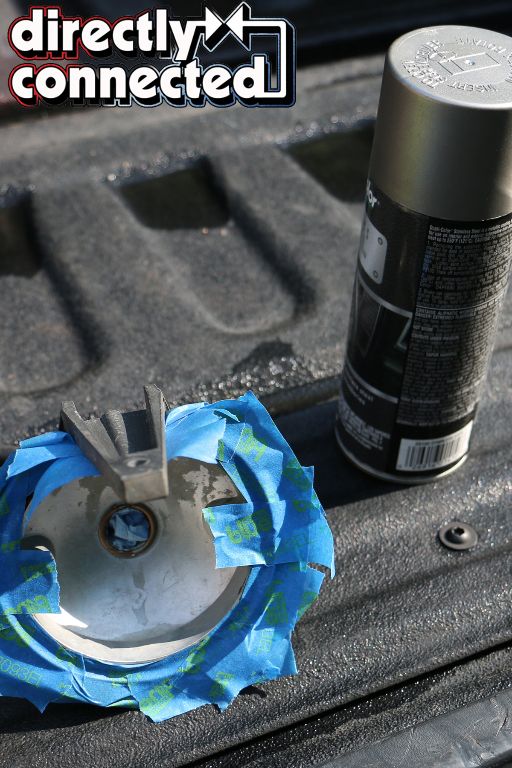

Above left: With a little bit of elbow grease and steel wool, our surface cleaned up nicely. We used a few passes of aerosol argent silver and let it dry for a couple of hours. Above right: What a difference, right? Save yourself the money and try to clean up what you’ve got first.

The parking lights are composed of two pieces, the front lens covers, which we replaced, and the cast pot metal housings. Since our housings were in good shape, we chose to keep them, but needed to touch them up. For 1968 and 1969, the housings used a yellow bulb that cast its reflection off of a reflective argent silver backing. After a little scuffing with a steel wool pad, we masked and painted our housings with a rattle can of argent silver.

Next we installed the lenses and installed them into the car. From below the front bumper, the new lens cast a brilliant yellow hue that was previously a faint glow.  Now, both inside and out, our Charger lights up beautifully. Of course nowhere near the digital display of today’s Mopars, the dashboard of yesterday’s Charger is now perfectly legible as we drive down the road at night. The dimly green airplane-like gauges cast a quiet, ghostly glow over the cabin, reminding us of those iconic behind-the-wheel scenes in “Christine” – but that’s a whole different story.

Directly Connected 1969 Charger lighting repair 19

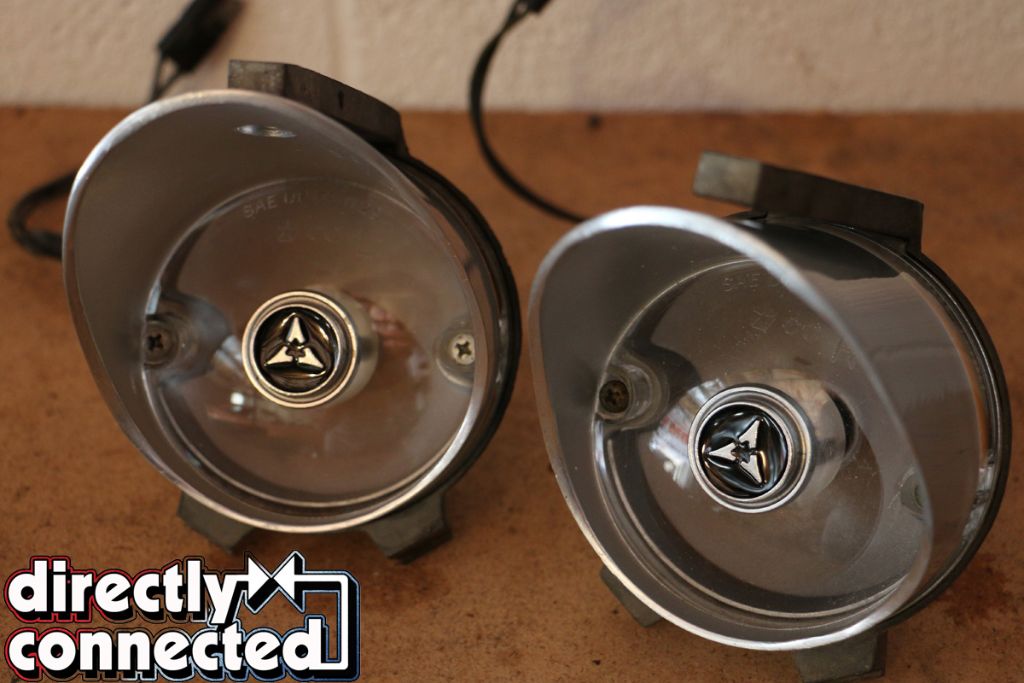

With both parts of our parking lamps reassembled, you can see how the new lenses radically improve the overall appearance.

Directly Connected 1969 Charger lighting repair 20   Directly Connected 1969 Charger lighting repair 21

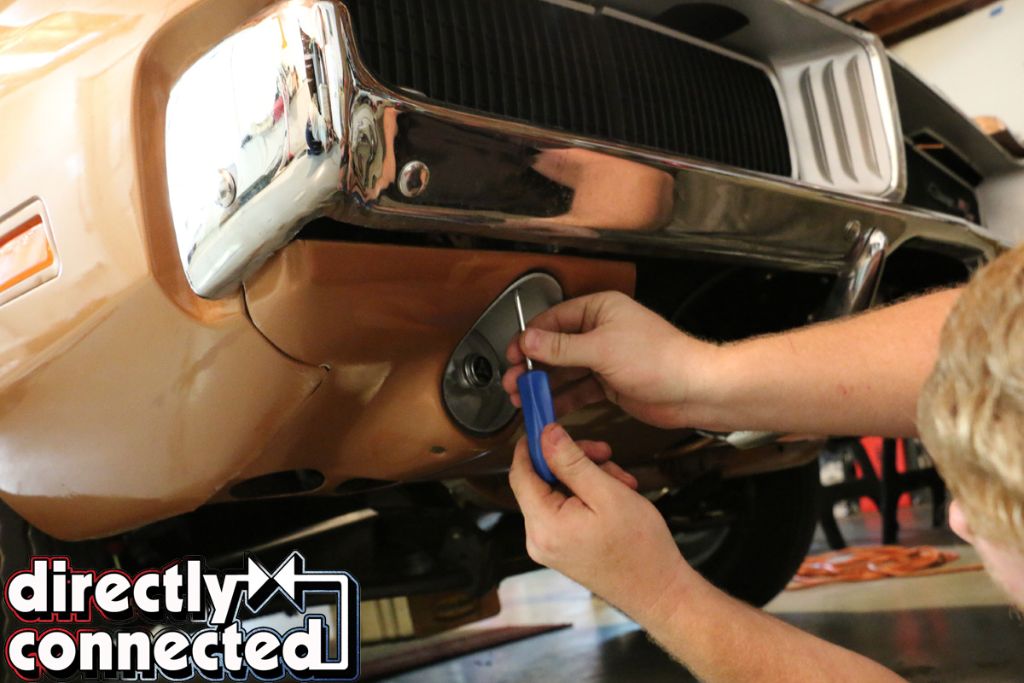

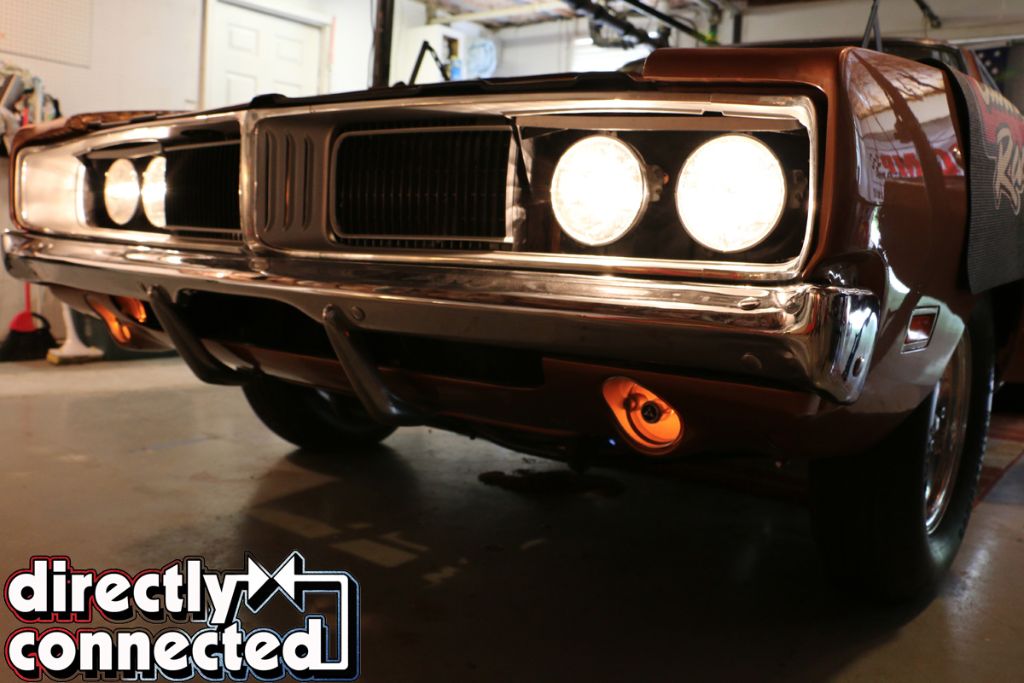

Above left: With our new parking lamps ready, we quickly installed them into the lower valance and flipped the switch! Above right: Our new electric-operated headlight doors, parking lights and halogen headlights made a massive difference compared to the dim yellow lights that came from the factory nearly 50 years ago.
